SBC for Embedded Networking with Ethernet and USB: DIL/NetPC DNP/9200

The DIL/NetPC DNP/9200 provides a very compact Atmel 180 MHz AT91RM9200 ARM9-based low power embedded controller with USB support, TCP/IP stack, web server, Telnet server, (T)FTP support for embedded networking with Ethernet and USB connectivity in industrial and laboratory environments. The DNP/9200 offers the footprint of a standard 64-pin DIL socket with 2.54 mm centers (0.1 inch pin grid) and all the hardware and software features necessary to add embedded networking capabilities to any product design. The DNP/9200 was developed specifically for products that need to be connected to 10/100 Mbps Ethernet-based TCP/IP networks and USB devices (Gateway Applications) with minimum development costs.

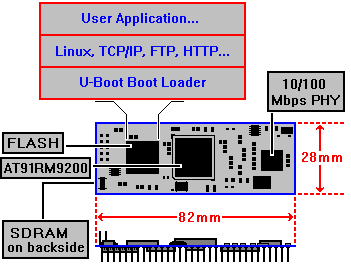

DIL/NetPC DNP/9200

The DNP/9200 comes as ready-to-run embedded networking system for Ethernet and USB host/device gateway applications. The use of the DNP/9200 will allow you to realize a substantial time and costs savings over other chip-based approaches. Currently, there is no other embedded networking solution with pre-installed O/S, USB host/device, 10/100 Mbps Ethernet- and TCP/IP-based and more development time savings features on the market. There is also no faster Time-to-Market for your product with lower costs if USB host/device, 10/100 Mbps Ethernet, full TCP/IP and an embedded Web server or other TCP/IP-based server software is required.

DIL/NetPC

To interface the DNP/9200 with existing devices and equipment, the DNP/9200 offers two asynchronous serial RS232C ports with TTL levels (COM1 with handshake signals, COM2 only TxD and RxD), one USB device port, one USB host port (compliance with USB 2.0 full-speed and low-speed specification), one 10/100 Mbps Ethernet interface, 20-bit general purpose high-speed parallel I/Os and a 8-bit extension bus with interrupt input and chip select outputs. There are two ways for DNP/9200 integration: 1. Adapt the DNP/9200 to your existing product. Use the existing I/Os within your product to communicate with the DNP/9200. 2. Use the DNP/9200 to control and monitor the hardware of your existing product. This might enable you to replace your existing controller entirely. In a new product design, the DNP/9200 can be the main controller. Additional I/Os are driven by the 8-bit extension bus.

The on-board FLASH memory provides storage for the DNP/9200 operating system with USB driver code, TCP/IP stack and embedded web server as well as OEM applications and data. The FLASH memory is in-system programmable over JTAG, serial and the Ethernet interface. The boot block of the FLASH memory is only in-system programmable over the JTAG interface through a special cable attached to a PC parallel port. For all other FLASH blocks, you can use also a high-speed serial connection through the DNP/9200 COM1 port or the 10/100 Mbps Ethernet interface for in-system programming. The DNP/9200 in-system programming was developed for OEM application software, operating system downloads (i.e. upgrade the embedded Linux O/S) and data download and to make it easier to update the on-board FLASH content in the field.

DIL/NetPC DNP/9200: Key Features

  • Atmel AT91RM9200 32-bit ARM9 MCU with 180 MHz Clock Speed
  • 200 MIPS @ 180 MHz
  • 32 Mbyte 32-bit SDRAM Memory
  • 16 MByte FLASH Memory
  • 10/100 Mbps Ethernet Interface
  • One USB Host Port (full-speed and low-speed)
  • One USB Device Port (full-speed and low-speed)
  • One Serial Peripheral Interface (SPI)
  • Two Serial Ports (one with all Handshakes)
  • 20-bit General Purpose high-speed Parallel I/O
  • 8-bit I/O Expansion Bus
  • 1 Interrupt Inputs, 4 Chip Select Outputs
  • Programmable Watchdog Timer
  • JTAG IEEE 1149.1 Test Interface
  • In-System Programming Features
  • 64-pin JEDEC DIL-64 Connector, 2.54 mm Centers
  • 3.3 Volt Low Power Design, Supply Voltage 3.3 VDC (+- 5%)
  • Supply Current 300 mA typ. @ 180 MHz
  • 0 °C to +70 °C Operating Temperature
  • Size 82 mm * 28 mm

DIL/NetPC DNP/9200: Memory Map

Physical Addr. Range Description Access Format
0x0000.0000-0x0FFF.FFFF AT91RM9200 Internal Memory 32-bit R/W
0x1000.0000-0x1FFF.FFFF 16 Mbyte FLASH Memory 16-bit R/W
0x2000.0000-0x2FFF.FFFF 32 Mbyte SDRAM Memory 32-bit R/W
0x4000.0000-0x4FFF.FFFF Chip Select Signal CS1 8-bit R/W
0x5000.0000-0x5FFF.FFFF Chip Select Signal CS2 8-bit R/W
0x6000.0000-0x6FFF.FFFF Chip Select Signal CS3 8-bit R/W
0x7000.0000-0x7FFF.FFFF Chip Select Signal CS4 8-bit R/W
0xF000.0000-0xFFFF.FFFF AT91RM9200 Internal Registers 32-bit R/W

Please note: The mapping and access details of the address range 0x0000.0000 – 0x0FFF.FFFF (AT91RM9200 Internal Memory) depends on the AT91RM9200 configuration. Please see the AT91RM9200 user manual for more information.

DIL/NetPC DNP/9200: Ordering Information

Ordercode Product
DNP/9200 DIL/NetPC with 180 MHz AT91RM9200, 16 MByte FLASH, 32 MByte SDRAM, Firmware in FLASH, 3.3 VDC Vcc.
