DIL/NetPC DNP/9200: Router Application Kit (RAK)

The DIL/NetPC DNP/9200 Router Application Kit (RAK) is everything you need to get started with your AT91RM9200 ARM9-based embedded gateway application. The RAK consist of a DNP/9200 and the DNP/EVA12. The DNP/EVA12 offers a socket for analogue, ISDN, GSM/GPRS, and IEEE802.15.4/ZigBee mesh networking modems. The RAK firmware comes with a web-based user interface.

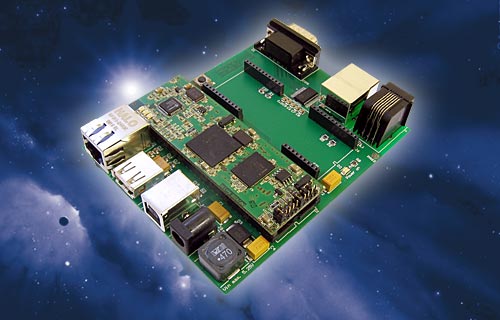

DIL/NetPC DNP/9200 RAK

The DNP/EVA12 offer also connectors for USB host, USB device, 10/100 Mbps Ethernet LAN, 5VDC power input, RS232 serial I/O (COM1), and RJ11/RJ45 telephone network interface. The on-board DC/DC converter provides the 3.3VDC for the DNP/9200 and a socket modem form an external 5VDC source.

DIL/NetPC DNP/9200: Router Application Kit (RAK) Key Features

The DIL/NetPC DNP/9200 RAK pre-installed embedded software consists of three main components: 1. the Linux kernel version 2.6, 2. the root file system, and 3. the RAK firmware with Web-based user interface. The Linux kernel offers FLASH File System (FFS) support. This allows you to download files via FTP or TFTP direct to the DNP/9200 FLASH memory.

  • DIL/NetPC DNP/9200 with 180 MHz AT91RM9200 and 16 Mbytes FLASH / 32 Mbytes SDRAM, 3.3 VDC Vcc
  • U-Boot Boot Loader and Embedded Linux pre-installed in FLASH
  • RAK firmware with Web-based interface
  • Base Board DNP/EVA12
  • Embedded Linux with Source
  • GNU Cross Tool Chain for C/C++ Software Development
  • Linux Remote Login with Telnet
  • Web Server Access Sample
  • FTP Server Access Sample
  • Many Sourcecode Samples

DIL/NetPC DNP/9200: Router Application Kit (RAK) Ordering Information

Ordercode Product
DNP/9200RAK1 RAK with DNP/9200, DNP/EVA12 w/o modem, pre-installed RAK firmware with Web-based interface.
DNP/9200RAK1-A RAK with DNP/9200, DNP/EVA12 with analog modem, pre-installed RAK firmware with Web-based interface.
DNP/9200RAK1-I RAK with DNP/9200, DNP/EVA12 with ISDN modem, pre-installed RAK firmware with Web-based interface.
DNP/9200RAK1-G RAK with DNP/9200, DNP/EVA12 with GSM/GPRS/EDGE modem, pre-installed RAK firmware with Web-based interface.
DNP/9200RAK1-Z RAK with DNP/9200, DNP/EVA12 with Mod/Zbee1 IEEE802.15.4/ZigBee mesh networking modem and pre-installed firmware.
