DIL/NetPC PNP/1110: Starter Kit

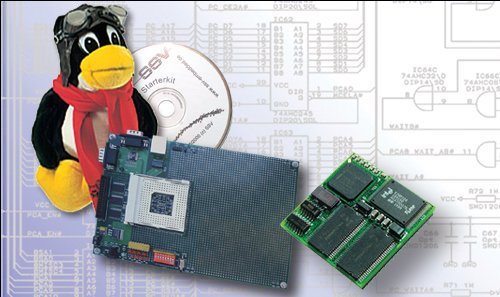

The DIL/NetPC PNP/1110 starter kit is everything you need to get startet with your high-end StrongARM/Linux-based embedded user interface application. The starter kit includes a PNP/1110 module with a pre-installed embedded Linux, pre-installed X-Server, the evaluation board DNP/EVA4, VGA TFT color LCD, power supply, serial interface (nullmodem) cable, one CD-ROM with software and documentation, FLTK graphic library, full GNU cross development tools and a printed user manual for the first steps with the starter kit.

The starter kit CD-ROM comes with a full GNU cross tool chain for C/C++ software development. This binary files of the tool chain runs on a x86 Linux-based host (SuSE, Red Hat or other) and builds ELF binary files for the Intel StrongARM SA-1110 32-bit RISC microcontroller. For using the DIL/NetPC PNP/1110 starter kit youd need a development system. The minimal configuration for this system is a Windows-based PC with the HyperTerminal terminal emulation program and a free COM port (COM1 or COM2) for the serial link between the DIL/NetPC PNP/1110 and HyperTerminal. For using the Ethernet link, your PC needs an Ethernet adapter with 10BASE-T interface. This environment allows web server Java applet programming and Linux shell script programming. For using the GNU C/C++ tool chain, it is necessary to run Linux on the development system.

DIL/NetPC PNP/1110: Starter Kit Key Features

The DIL/NetPC PNP/1110 pre-installed embedded Linux consists of two main components: 1. the Linux kernel and 2. the root filesystem. The PNP/1100 FLASH offers also a FLASH Loader for downloading new Versions of the Linux kernel and the root file system. This in-system programming feature can be used over a simple serial link between the development system and the PNP/1110.

PNP/1110-NV (Networking Version) with Intel 206 MHz SA-1110 and Ethernet, 3.3 VDC Vcc

Firmware and Embedded Linux pre-installed in FLASH

Evaluation Board DNP/EVA4

Nullmodem Cable

110 VAC or 230 VAC to 5 VDC International Power Supply

CD-ROM with User Manual and Hardware/Programmers Manuals

Embedded Linux with Source

X-Server for Linux

FLTK Graphic Library

GNU Cross Tool Chain for C/C++ Software Development

Cross GDB and GDBSERVER for Ethernet-based remote debugging

Linux Remote Login with Telnet

Web Server Setup Sample

FTP Server Setup Sample

Many Sourcecode Samples

DIL/NetPC PNP/1110: Starter Kit Ordering Information

Ordercode	Product
DNP/SK6	Starterkit with PNP/1110-NV, DNP/EVA4, TFT VGA LCD, CD-ROM and Null-Modemcable.
